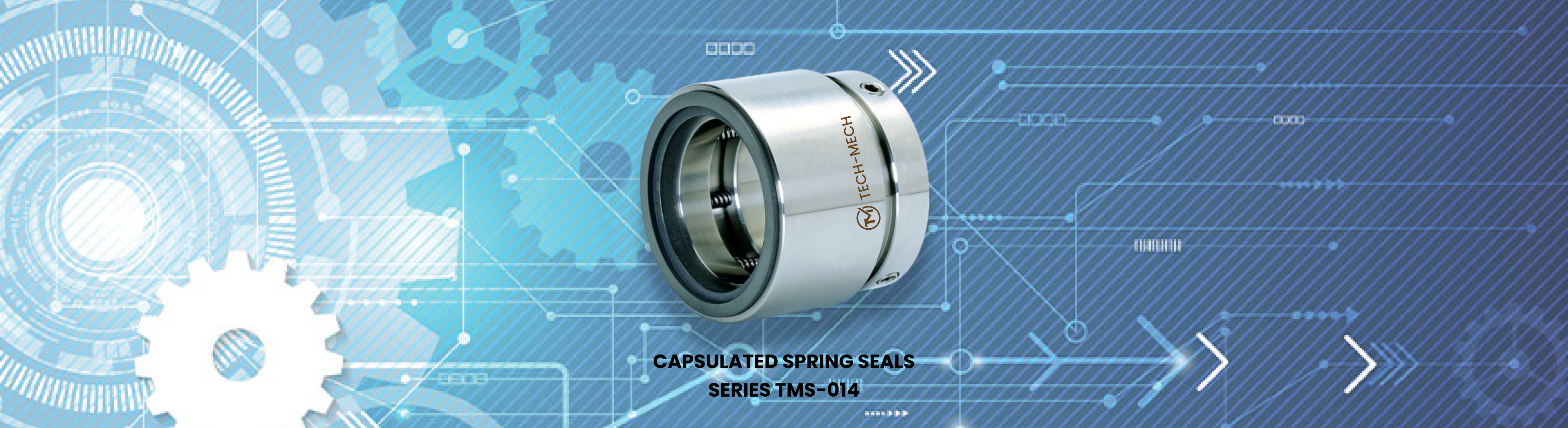

CAPSULATED SPRING SEALS
Series TMS-014 is the balanced seal without need for step sleeve. This seals are designed for media containing solids or with high viscosity. The springs are protected from media, thus no clogging of springs or springs compartment, resulting in high reliability.
Seal Characteristics
• Single Seal• Balanced
• Capsulated Spring
• Independent on direction of rotation
Applications
• General Chemicals• Food Industries
• Media Containing Solids
Performance Range
• Shaft Diameter : 18...100mm• Pressure : 25 bar (max)
• Temperature : -20...140OC
• Velocity : 15 m/sec
Materials
• Seal Faces : Carbon, Ceramic, SiC, Tung. Carbide• Metal Parts : SS304, SS316, Special Alloy
• Bellows : Viton, Nitrile
