AGITATOR - MIXER - VESSEL SEALS

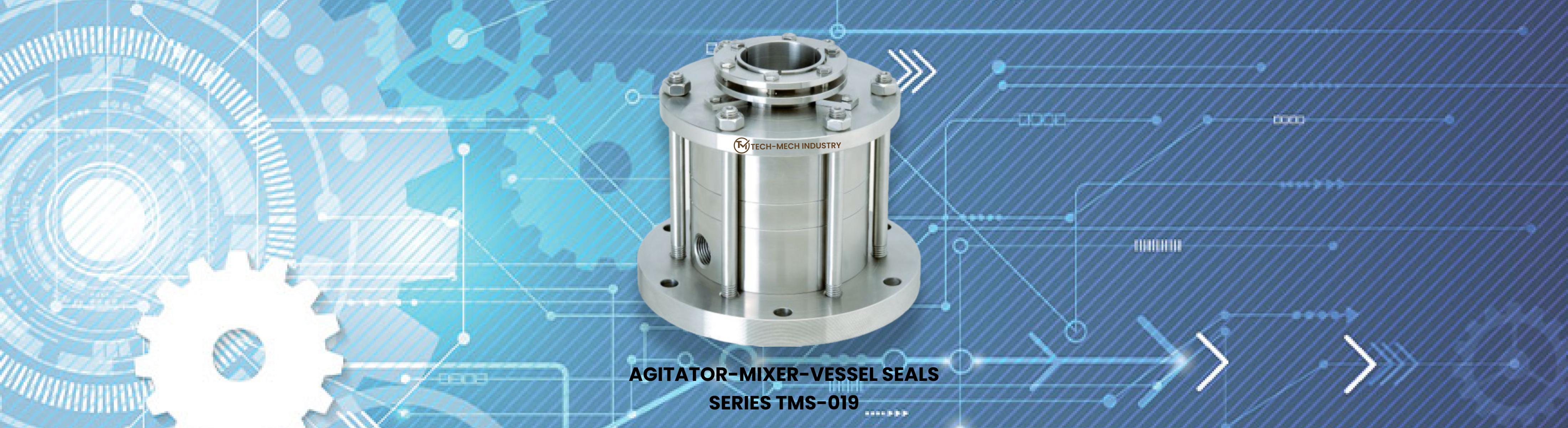

Series TMS-019 are preset factory assembled cartridge seals for use in Agitators, Mixers and Reactor Vessels. The seals construction vary slightly for top entry vessels, side entry vessels and bottom entry vessels. The seals are designed to the shortest shaft length and the bearings are located as close to the vessel body to minimize the deflection.
Seal Characteristics
• Single Seal/Double Seal• Unbalanced/Balanced
• Independent on direction of rotation
Applications
• General Chemicals and its vapours.• Petrochemicals and its vapours.
• Light Hydrocarbons and its vapours.
Performance Range
• Shaft Diameter : 25...150mm• Pressure : vacuum ....40 bar (max)
• Temperature : -20...220OC
• Velocity : 4 m/sec
Materials
• Seal Faces : Carbon, SiC, Tung. Carbide• Metal Parts : SS316, Hastelloy-C, Alloy 20
• Bellows : Elastomers, PTFE
